GALLERY

1953-54 6/80 rad with 4lb pressure cap. Note bracket at top which bolts to inside of grille. T. Handley.

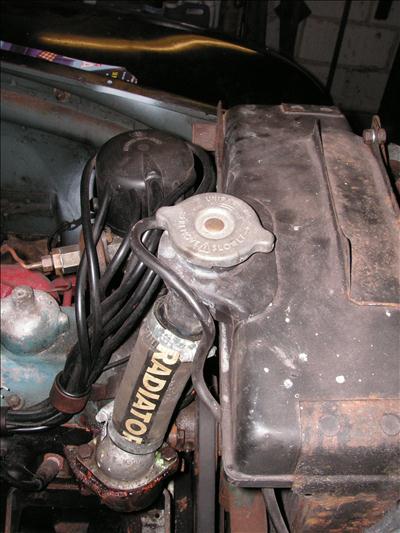

MS radiator Series 2. Steve Lord.

Radiator in P. Sinclair's car; car is 1950 but rad may not be original.

S1 left, S2 right.

1950 MS rad with screw cap.

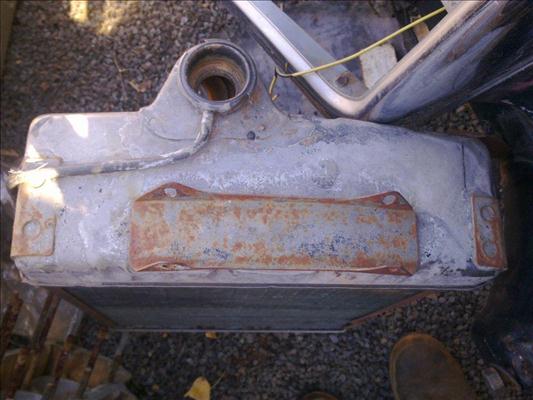

This is a 4/50 radiator with screw top. This radiator like all the early 4/50s, 6/80s and Rileys from Nuffield has a steel core.

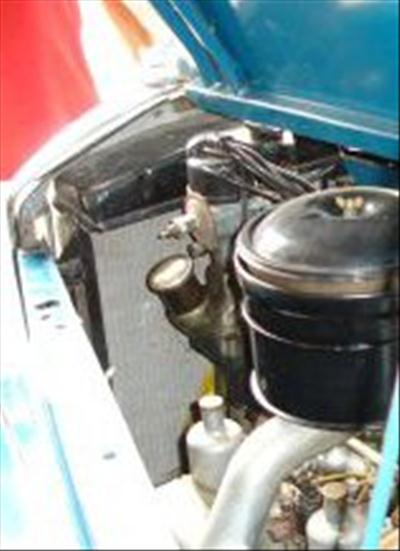

View 2 1951 6/80 CKD.

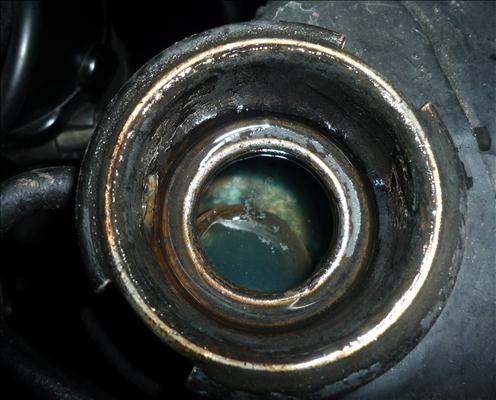

4/50 radiator cap (P. Carroll)

4/50 radiator top (P. Carroll)

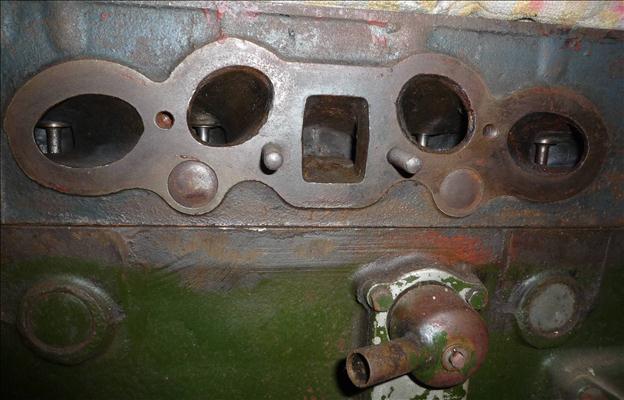

4/50 series 1 head (P. Carroll)

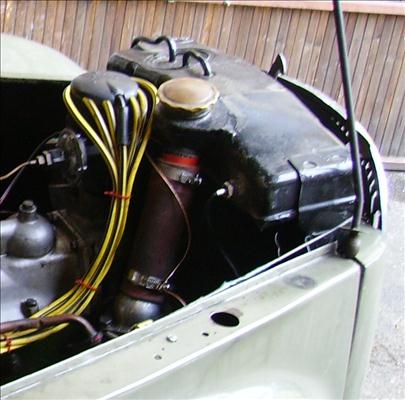

Paul Sinclair working on my 1950 MS YSJ 346, note the small brass expansion tank fitted to the N/S side of the engine bay-carb side-right of pic. This small tank came with the car, I was later informed by Mr Handley that it was not original equipment, and also not necessary as the S1 radiator has an internal pressure valve.

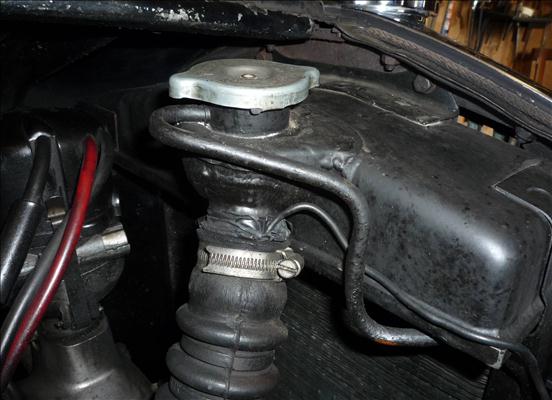

1951 CKD 6/80 rad. B. Francis. Pressure cap
